• STRUCTURAL & MISCELLANEOUS
    3D STEEL DETAILING

    COMPLETE SHOP & FIELD DRAWINGS FOR STRUCTURAL STEEL FABRICATION
  • STRUCTURAL & MISCELLANEOUS
    3D STEEL DETAILING

    COMPLETE SHOP & FIELD DRAWINGS FOR STRUCTURAL STEEL FABRICATION

Blue Leopard Engineering Services LLP

Present Abililty (We have experience in handling small to medium size project such as Residential Building, Commercial buildings, Industrial Structures (ranging from 50 TON TO 1000 TON).We provide high quality error free drawings and as scheduled.)


QUALITY PRODUCTION

Every job is a reflection of the person who does it, because quality only happens when you care enough to do your best!

EXCELLENT PERFORMANCE

When an individual performance learns team confidence Excellence becomes a reality!

24 * 7 CUSTOMER SERVICE

We’re ready to lead your company into the future of Steal Detailing. With the skills, knowledge and the leading industry software’s

Our Services

  • Create and Check 3D Model of SDS/2 using version of your choice.
  • Create Advanced Bill of Material if required to import in to Management Software. (Fabtrol, EJE, FabSuite etc...)
  • Create and track Request for Information queries if required. (RFI's)
  • Create 2D Shop (Single or Multi Shop sheets), Erection Drawings and Anchor Bolt Setting Plan.
  • Create Gather Drawings or Single Part Drawings of all parts on the project.
  • Create Bill of Material Export File for Fabricator's use. (ABM's Fabtrol files, Kiss files etc...)
  • Create NC1 & DXF Files tailored to the Fabricator's equipment.
  • Create Field Bolt: Point to Point Placement List and Summaries for all Field Bolts.

We specialize in all facets of structural steel detailing

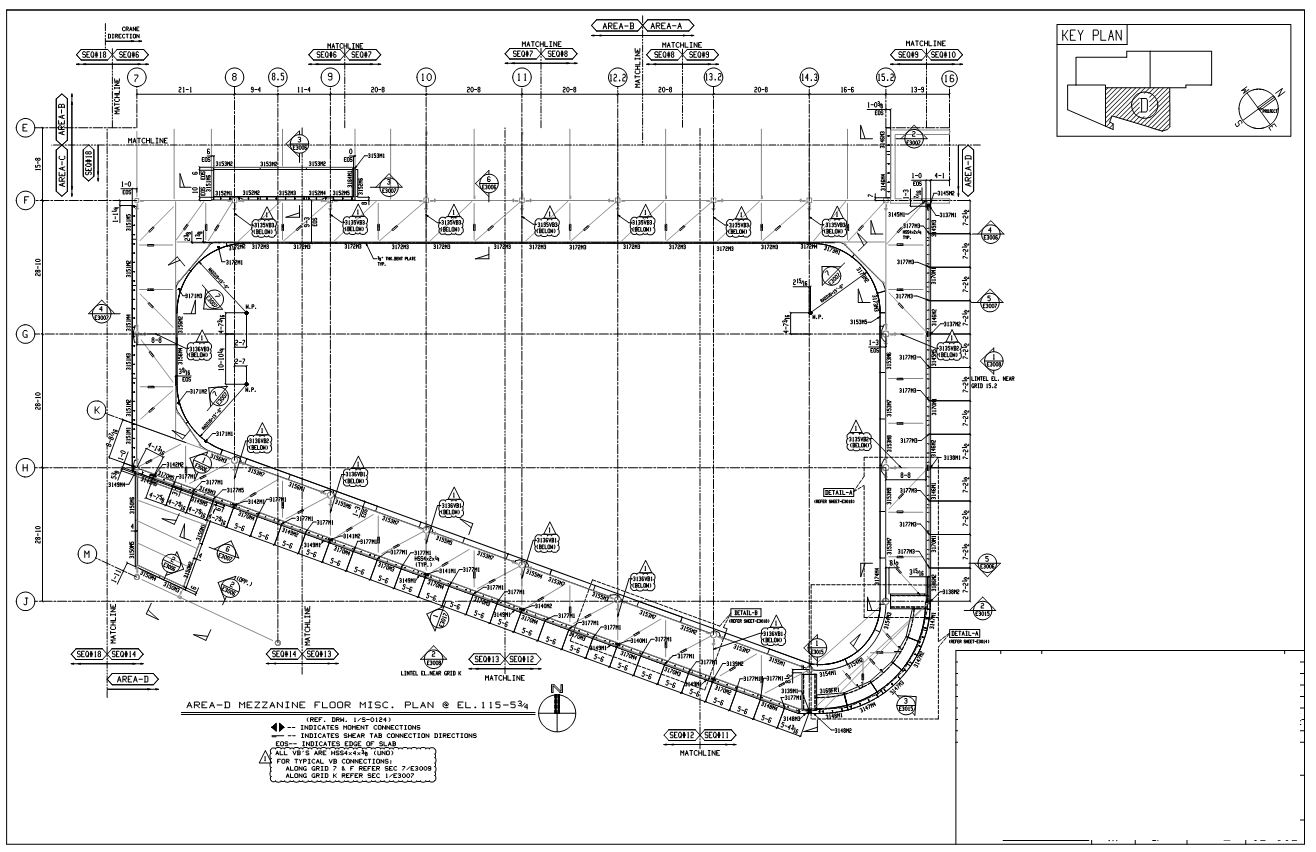

ERECTION VIEW
STEEL STRUCTURE

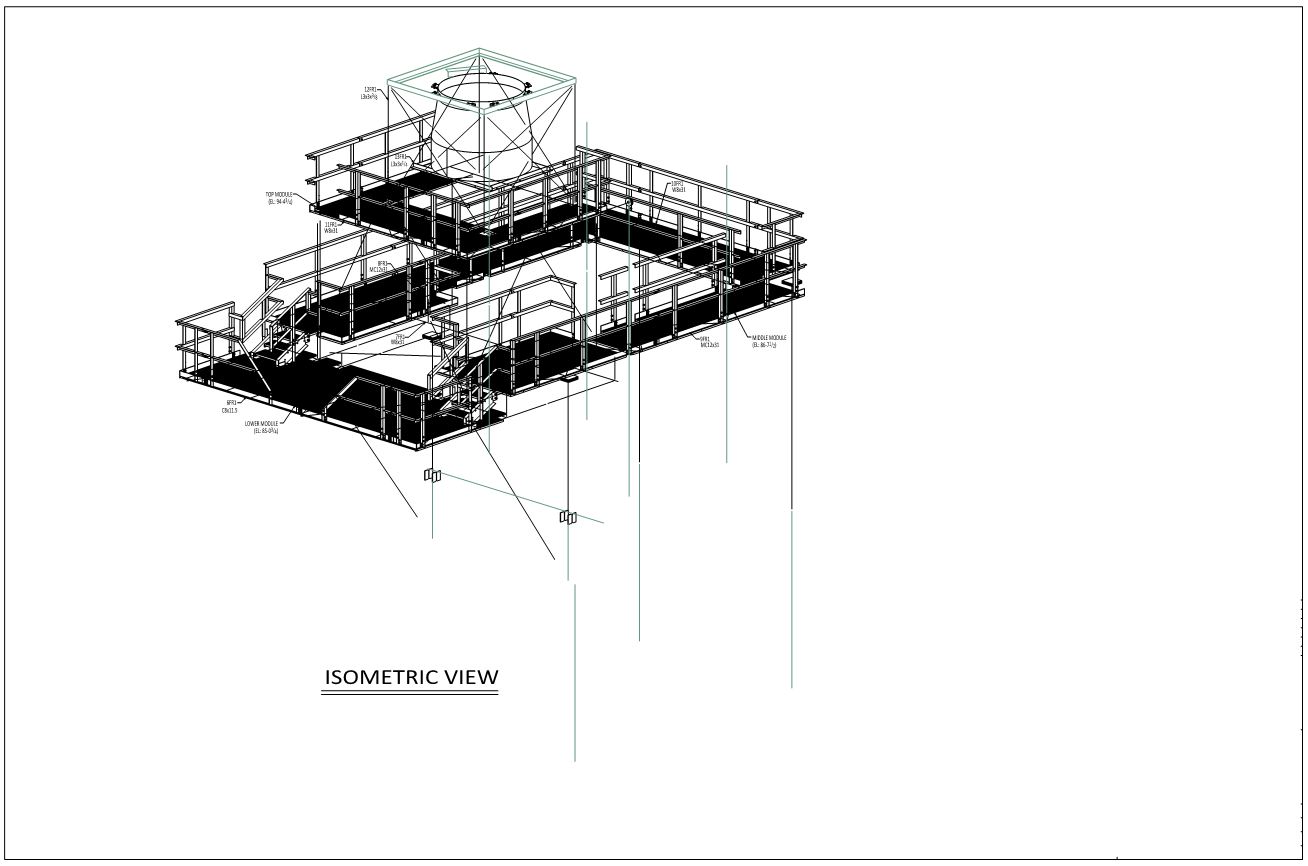

ISOMETRIC VIEW
STEEL STRUCTURE

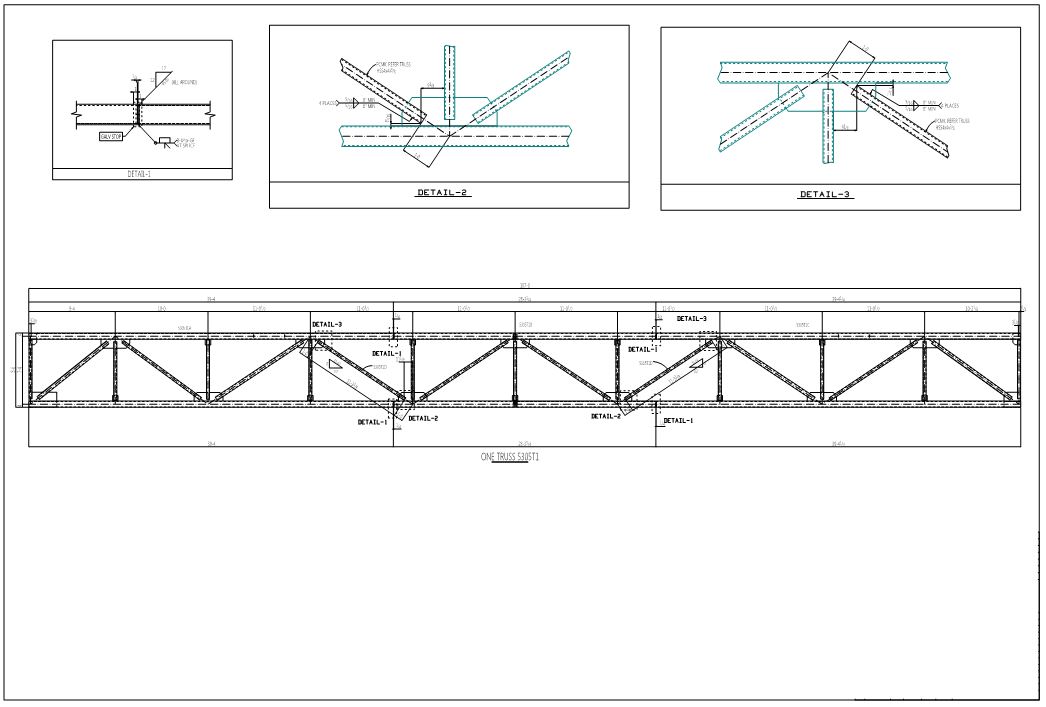

DETAIL VIEW
STEEL STRUCTURE

View All Sample Drawings

STRUCTURAL STEEL DETAILING SINCE 2017
Blue Leopard Engineering Services LLP

We, Blue Leopard Engineering Services LLP are offering complete shop and field drawings for structural steel fabrication services at competetive rates serving clients across globe.

Established in 2017, the company is located at Nashik, Maharashtra (India) with vision to provide world class desiging services to potential clients and

To meet the engineering and fabrication needs of the industry, We use a combination of the latest technology tools in order to produce complete and precise details for our clients.

During the checking phase, Our experienced checkers use both automated 3D detailing software and other proven…
